Welcome to VDatum!

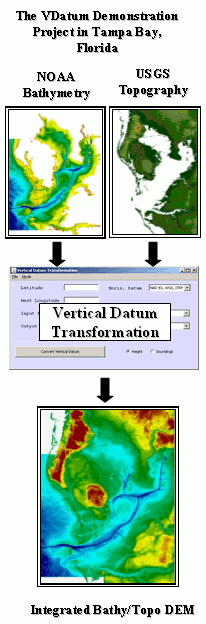

VDatum is a free software tool being developed jointly by NOAA'sNational Geodetic Survey (NGS), Office of Coast Survey (OCS), and Center for Operational Oceanographic Products and Services (CO-OPS). VDatum is designed to vertically transform geospatial data among a variety of tidal, orthometric and ellipsoidal vertical datums - allowing users to convert their data from different horizontal/vertical references into a common system and enabling the fusion of diverse geospatial data in desired reference levels.
Important:
- Understanding how the W.GOM Roadmap differs from the normal Roadmap
- Understanding how the Puerto Rico and US Virgin Island Roadmap differs from the normal Roadmap
- We retired the Raster Formats (GeoTIFF and ERDAS IMG) in the File Conversion.
- Understanding how the Columbia River Roadmap differs from the normal Roadmap
- Understanding how the West Coast Roadmap differs from the normal Roadmap
- Understanding how Chesapeake/Delaware Bay Transformation Roadmap differs from the normal roadmap
Download the latest VDatum (v4.7) and its datasets.
Features
VDatum software is written in Java, so it runs on Mac OS X, Unix, VMP, and Windows. About Java Home
Where available and uncertainties are established, VDatum supports the conversions among following:
Coordinate Systems: Geographic, UTM, State Plane Coordinates (SPC), and geocentric (ECEF)
Horizontal Datums: NAD27, NAD83_2011, NAD83_1986, NAD83_FBN, and NAD83_HARN; and ellipsoidal datums such as of ITRF, WGS84, and NAD83 serializations
Vertical Datums:
Ellipsoidal Datums: NAD83_2011, WGS84, ITRF88, ITRF89, ITRF90, NEOS 90, PNEOS 90, ITRF91, ITRF92, SIO/MIT 92, ITRF93, ITRF94, ITRF96, ITRF97, IGS97, ITRF2000, ITRF2020, IGS00, IGb00, ITRF2005, IGS05, ITRF2008, IGS08, ITRF2014, IGS14, WGS84(transit), WGS84(G730), WGS84(G873), WGS84(G1150), WGS84(G1674), NAD83(PACP00), NAD83(MARP00)
Orthometric Datums: NAVD88, NGVD29, PRVD02, VIVD09, ASVD02, GUVD04, NMVD03, HAWAII EGM2008, EGM1996, and EGM1984
-
Tidal Datums: MLLW, MLW, LMSL, DTL, MTL, MHW, LWD, MHHW and Local Tidal(LT)
IGLD85, LWD IGLD 1985, OHWM IGLD 1985
GEOID models: GEOID18, GEOID12B, GEOID12A, GEOID09, GEOID06 (Alaska only), GEOID03, GEOID99, and GEOID96
EGM models: EGM2008, EGM1996, and EGM1984
xGEOID models: xGEOID16b (BETA), xGEOID17b (BETA), xGEOID18b (BETA), xGEOID19b(BETA), and xGEOID20b(BETA)
Supported file format: text(ASCII), LiDAR(.LAS, *.LAZ) version 1.0, 1.1, 1.2 and 1.4 with Classification, ESRI ASCII Raster(.ASC), ESRI 3D shapefile
NOAA VDatum APIs: Full API
